Connect Salesforce

Learn how to configure a connection to Salesforce via SAML

Introduction

Each SSO Identity Provider requires specific information to create and configure a new Connection. And often, the information required to create a Connection will differ by Identity Provider.

To create an Salesforce SAML Connection, you'll need three pieces of information: an ACS URL, an SP Entity ID, and a Metadata URL.

WorkOS Provides

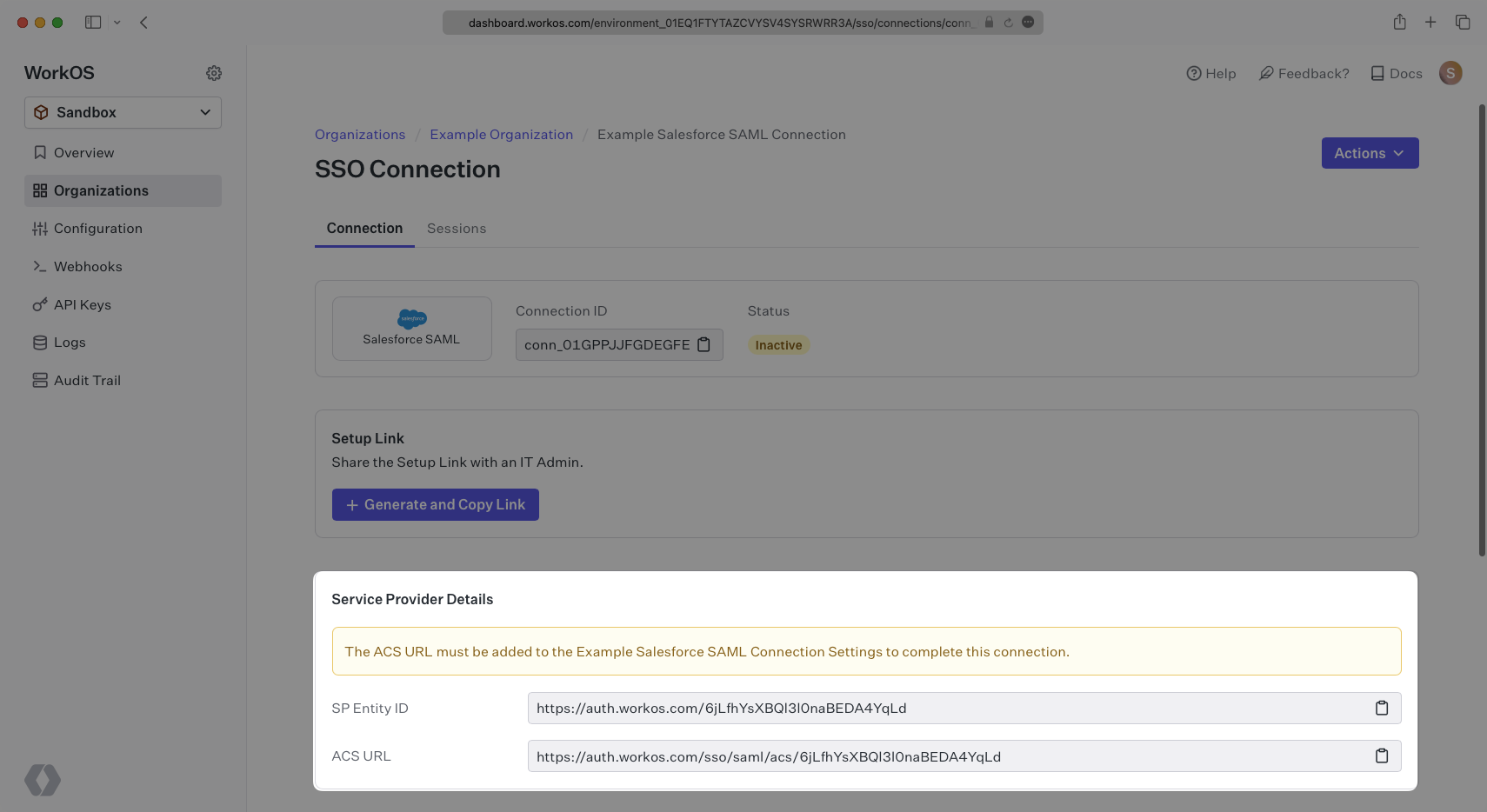

WorkOS provides the ACS URL and SP Entity ID. It's readily available in your Connection's Settings in the WorkOS Dashboard.

The ACS URL is the location an Identity Provider redirects its authentication response to. In Salesforce's case, it needs to be set by the Enterprise when configuring Salesforce as an Identity Provider.

The Entity ID is a URI used to identify the issuer of a SAML request, response, or assertion. In this case, the entity ID is used to communicate that WorkOS will be the party performing SAML requests to the Enterprise's Salesforce instance.

Specifically, the ACS URL and SP Entity ID will need to be set in the Connected Apps setup in Salesforce.

Overview

And then, you provide the Salesforce Metadata URL. Normally, the this will come from your Enterprise customer's IT Management team when they set up your application's SAML client in their Salesforce instance. But, should that not be the case during your setup, here's how to obtain it.

1

Generate Certificate

Log in to your Salesforce Account, and navigate to "Setup" by clicking the Settings Cog on the top right and selecting "Setup".

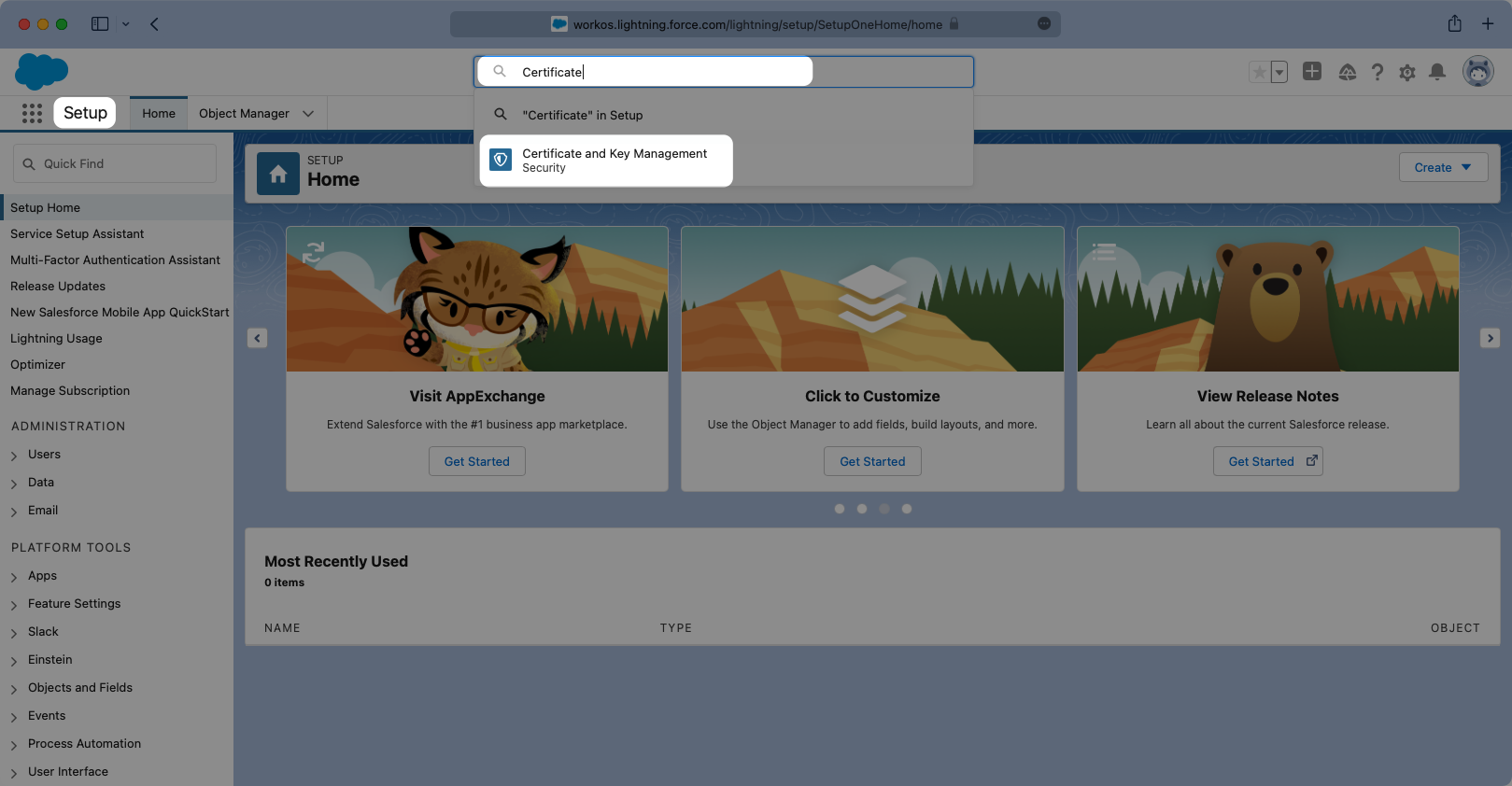

Once in setup mode you can use the search bar to easily navigate around between settings pages. The first page to navigate to is the "Certificate and Key Management" page.

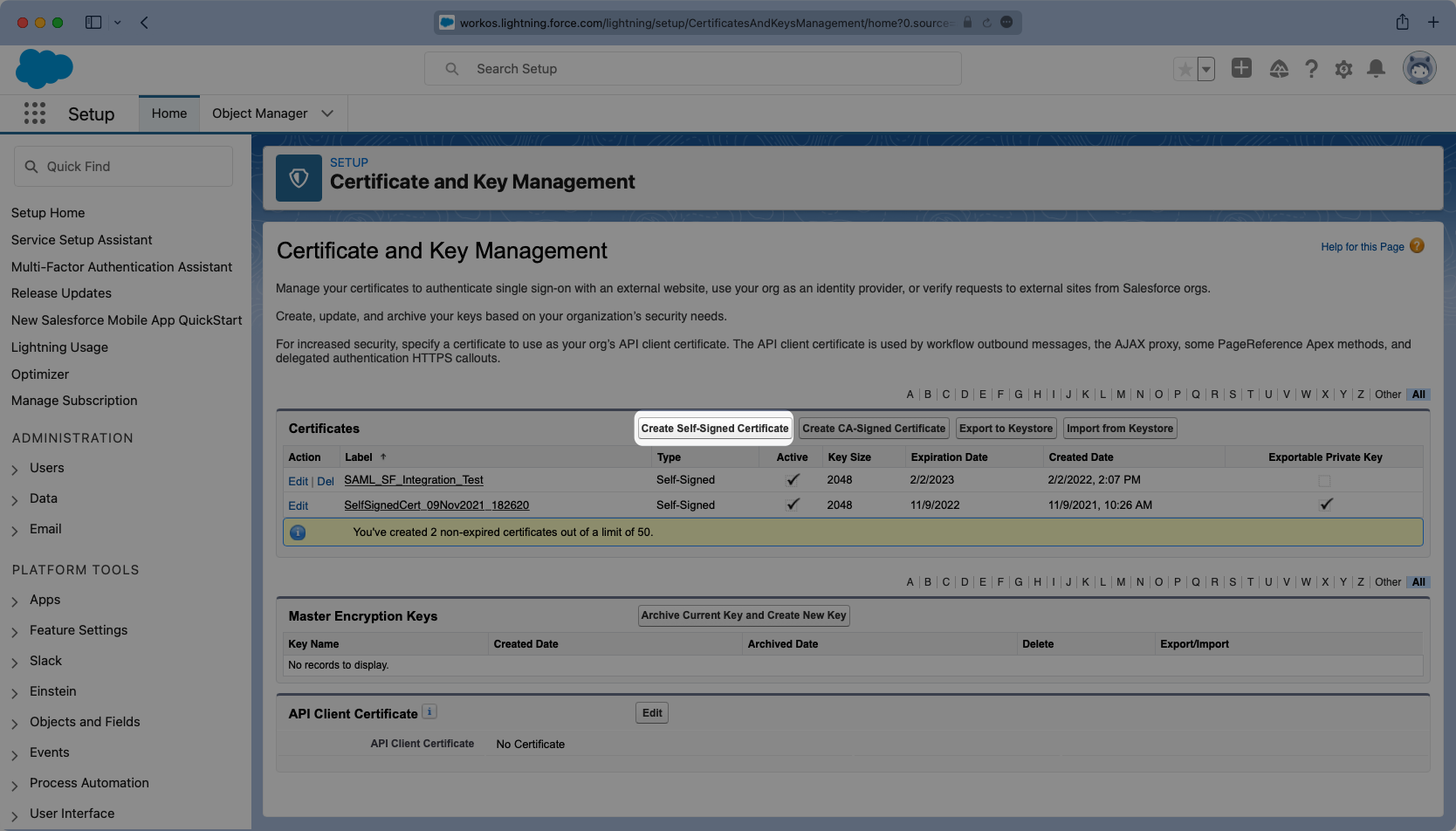

Once in setup mode you can use the search bar to easily navigate around between settings pages. The first page to navigate to is the "Certificate and Key Management" page. If a key does not exist that you would like to use, generate a new one by clicking "Create Self-Signed Certificate"

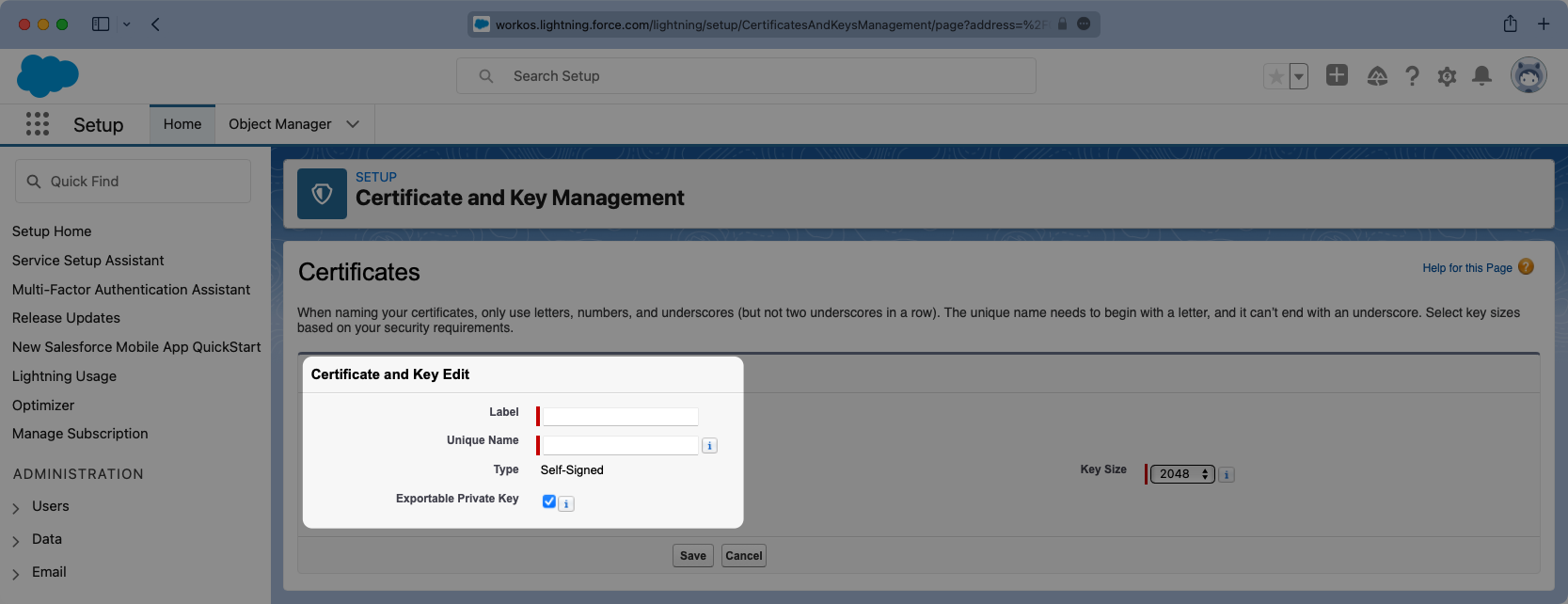

Give the Certificate a meaningful label and unique name and select the Key Size you'd like to use. It's not necessary to have an Exportable Private Key, but if you are using a key-certificate store you can choose this option.

2

Enable Salesforce as an IDP

From the setup search bar browse to the "Identity Provider" portal in Salesforce.

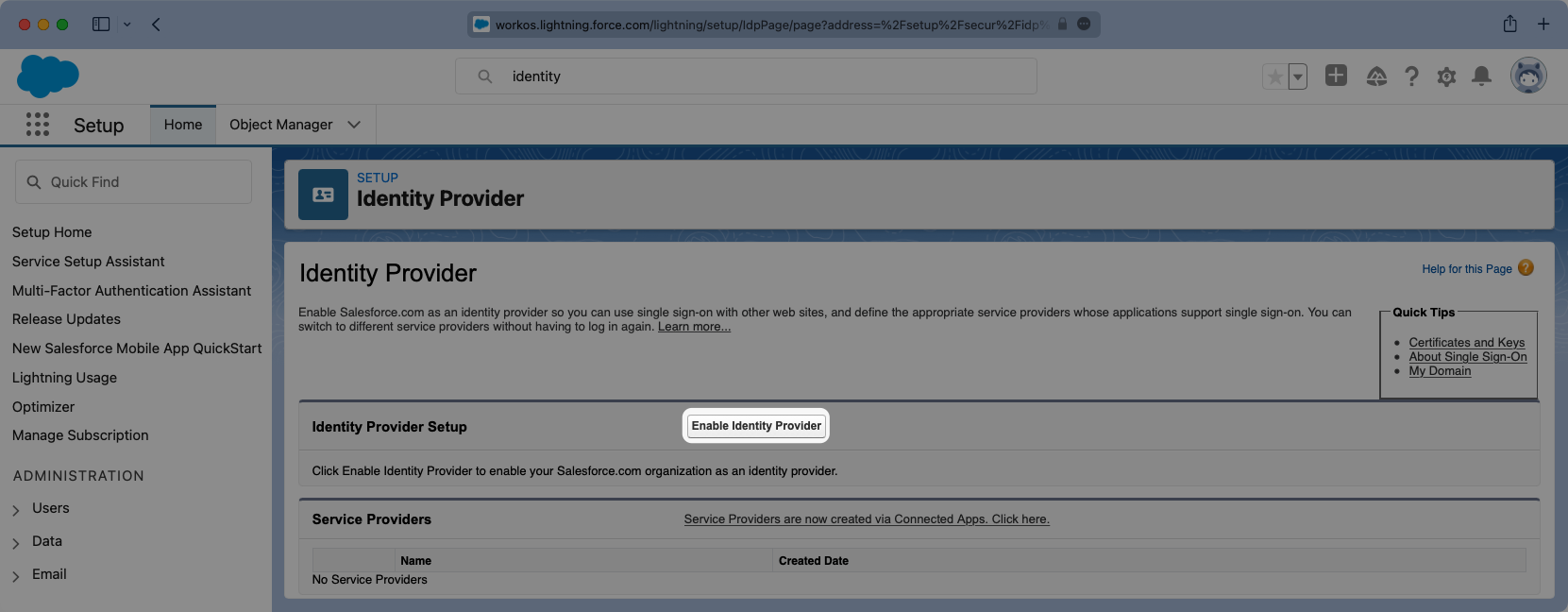

If it has not already been done, select "Enable Identity Provider".

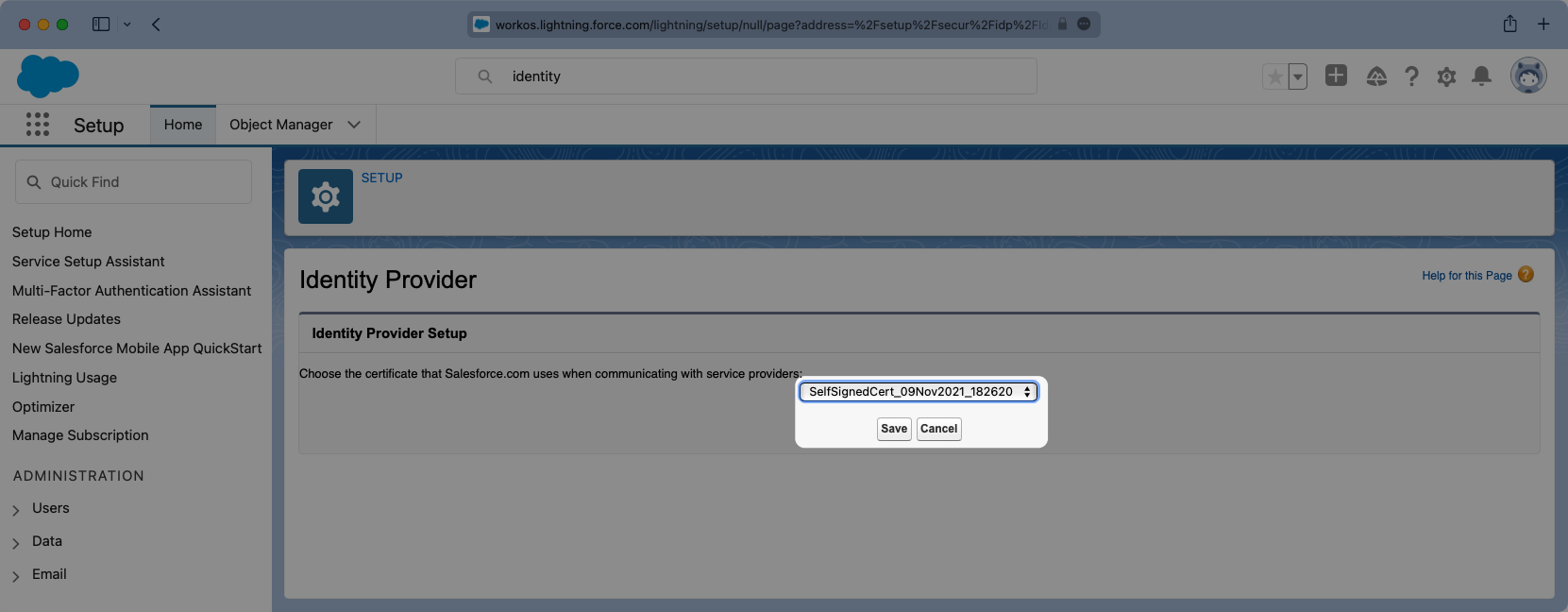

You will need to select the correct certificate from the previous step.

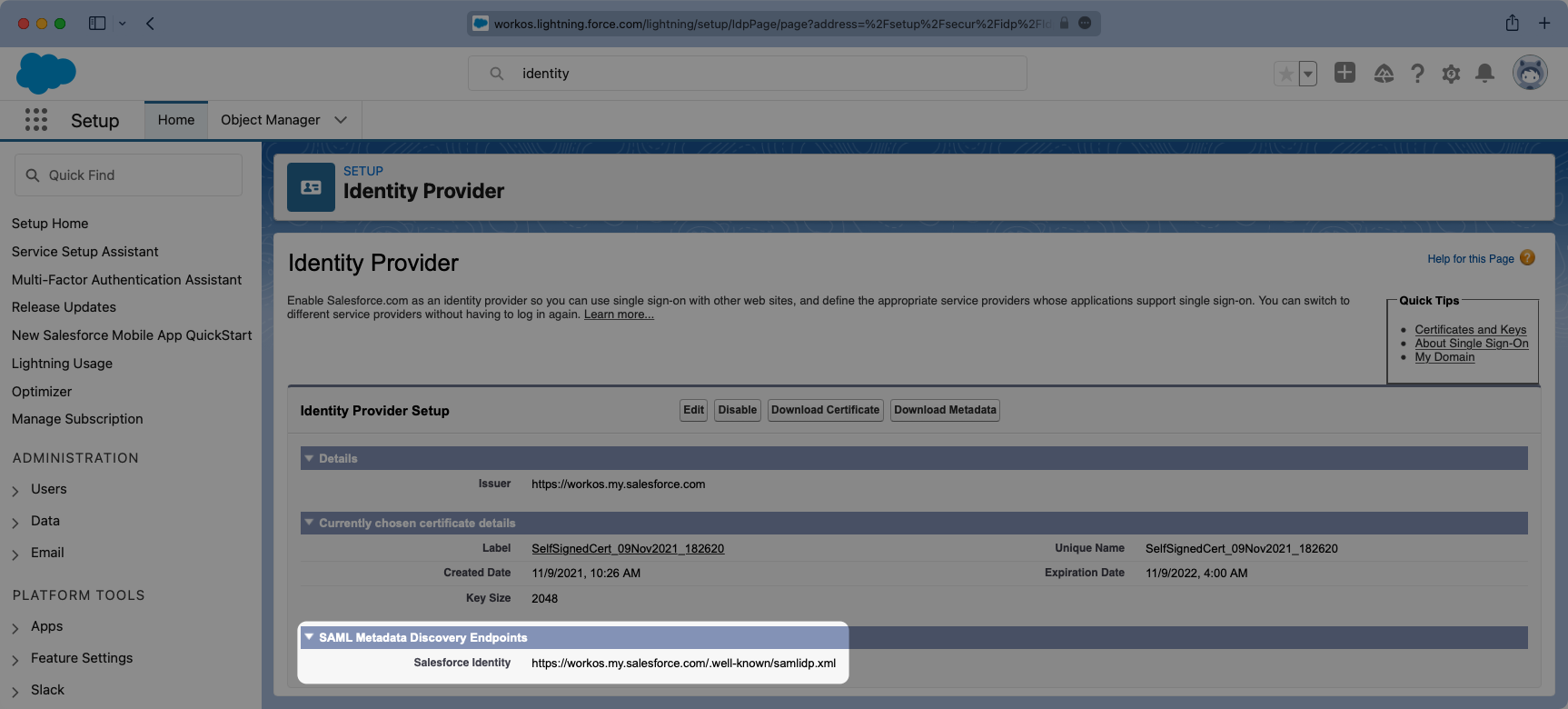

Additionally this page will display the Metadata URL. You will need to copy this URL and in a later step it will be uploaded into WorkOS.

3

Configure SAML Application

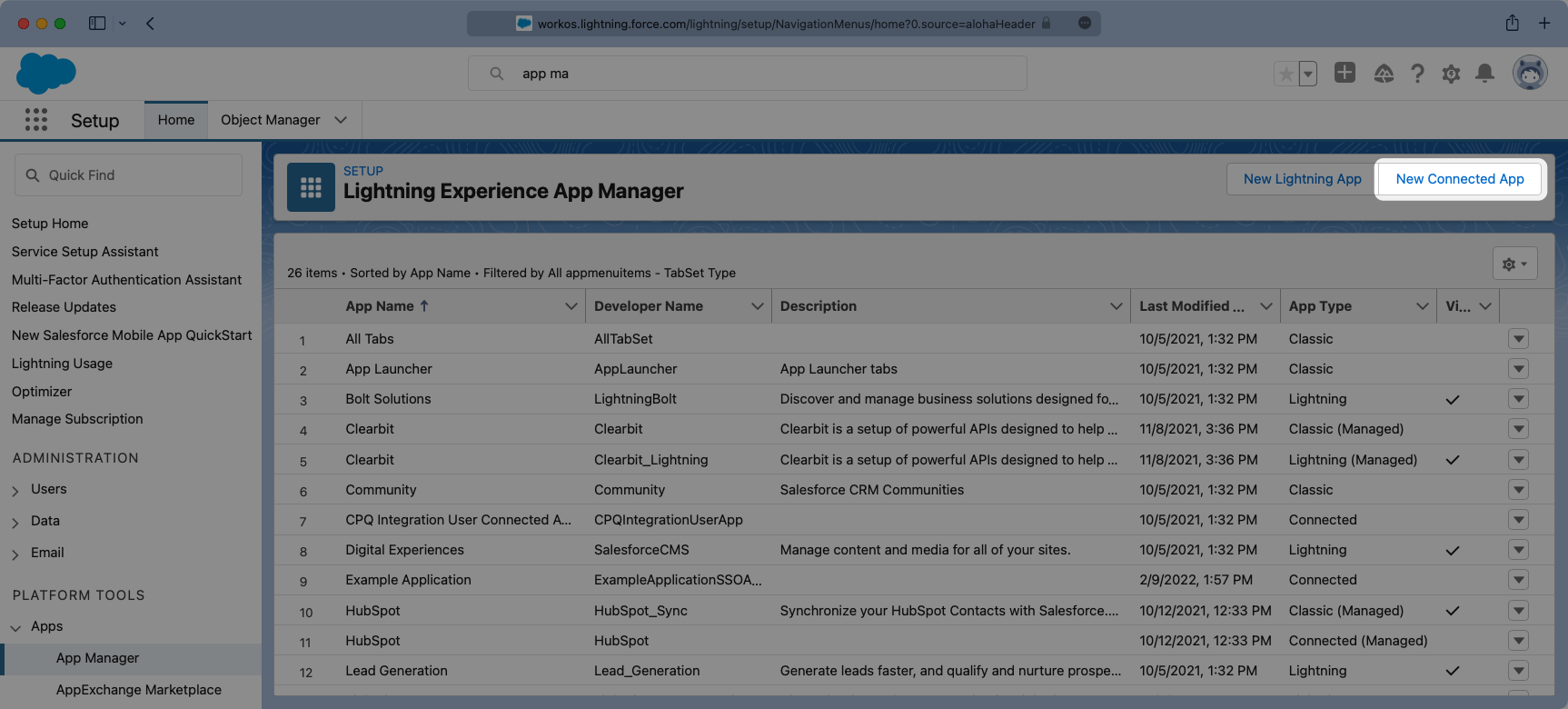

Next from the setup search bar browse to the "App Manager" portal. Once here you will want to select the option for "New Connected App".

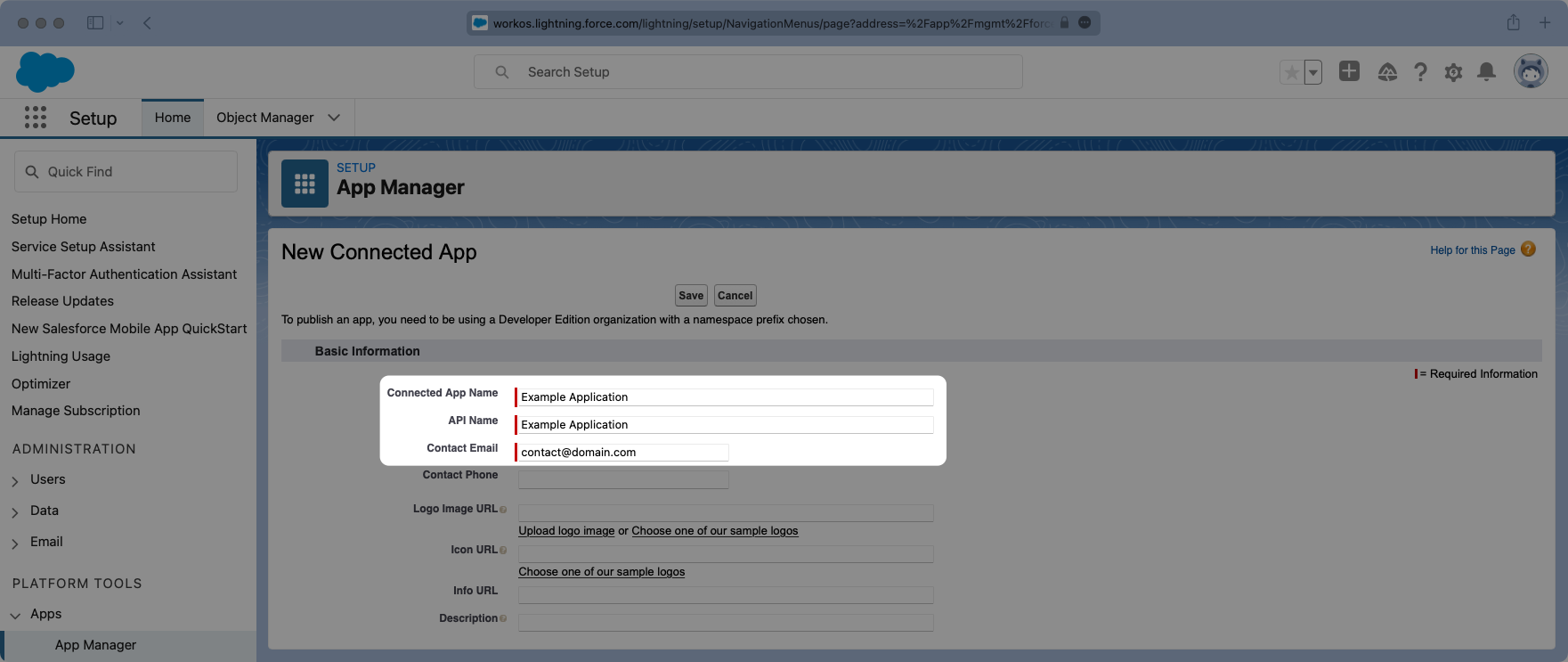

Give the App and API a meaningful name and set a contact email that corresponds to who you'd reach out to for support should there be an issue. You can always opt to use [email protected]

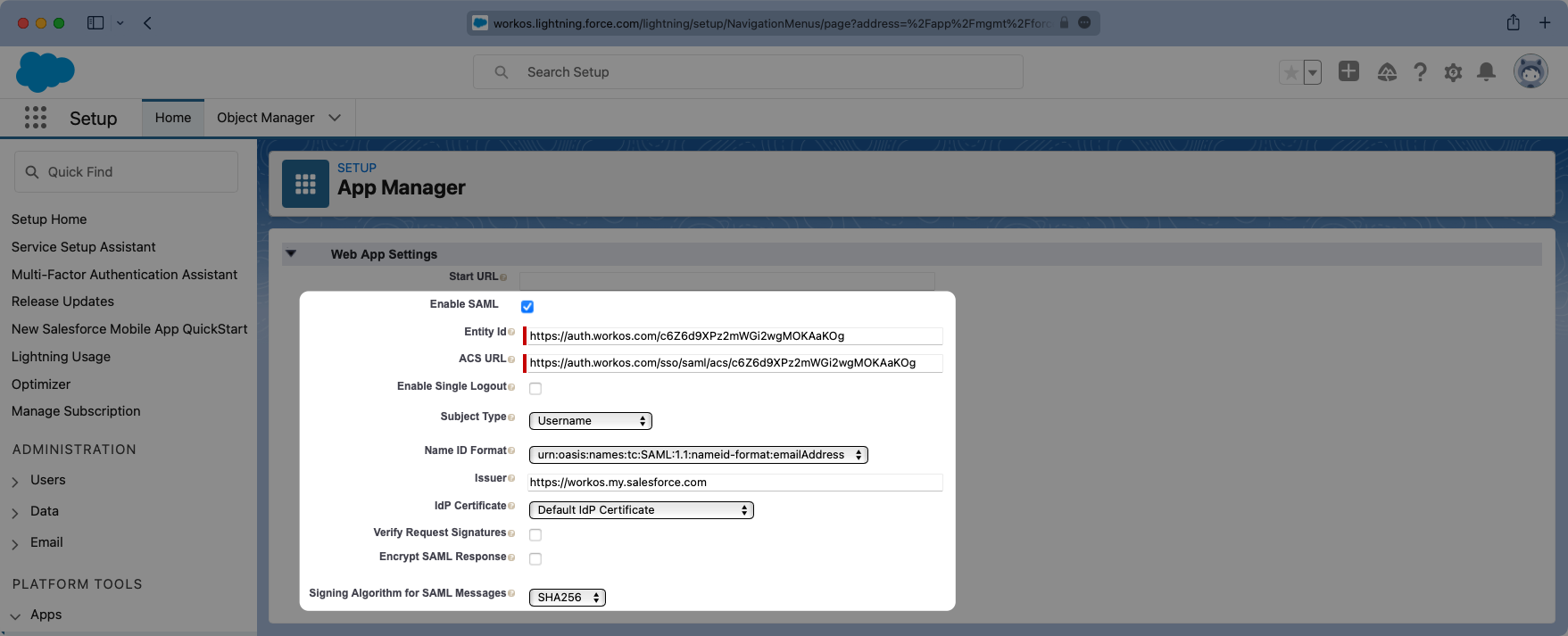

Scroll down further to the "Web App Settings" and check the box for "Enable SAML". Enter the Entity ID and ACS URL into their respective places within the Settings.

The "Subject Type" should be set to "User ID" and the "Name ID Format" should be set tourn:oasis:names:tv:SAML:1.1:nameid-format:emailAddress. The "Issuer" should populate correctly with your Salesforce subdomain. For the IdP Certificate, select the certificate that matches the one previously used when enabling the Identity Provider, and for the "Signing Algorithm for SAML Messages" choose "SHA256".

Save the configurations and you should now see the new Connected App listed under "App Manager".

4

Configure User Attributes and Claims

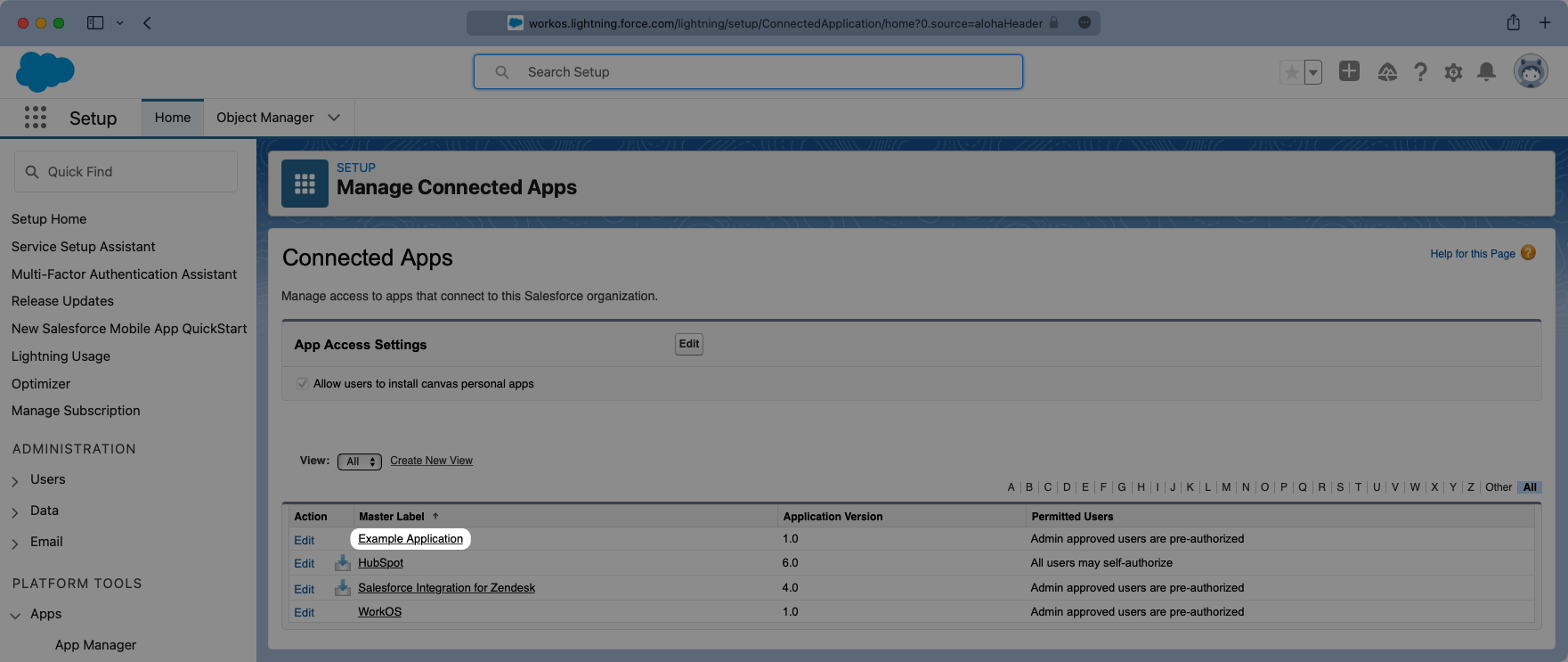

In the Setup search bar browse to the "Manage Connected Apps" portal. Click on your application and this will open the view where you can configure the attribute mapping, and later on the user profile access permissions.

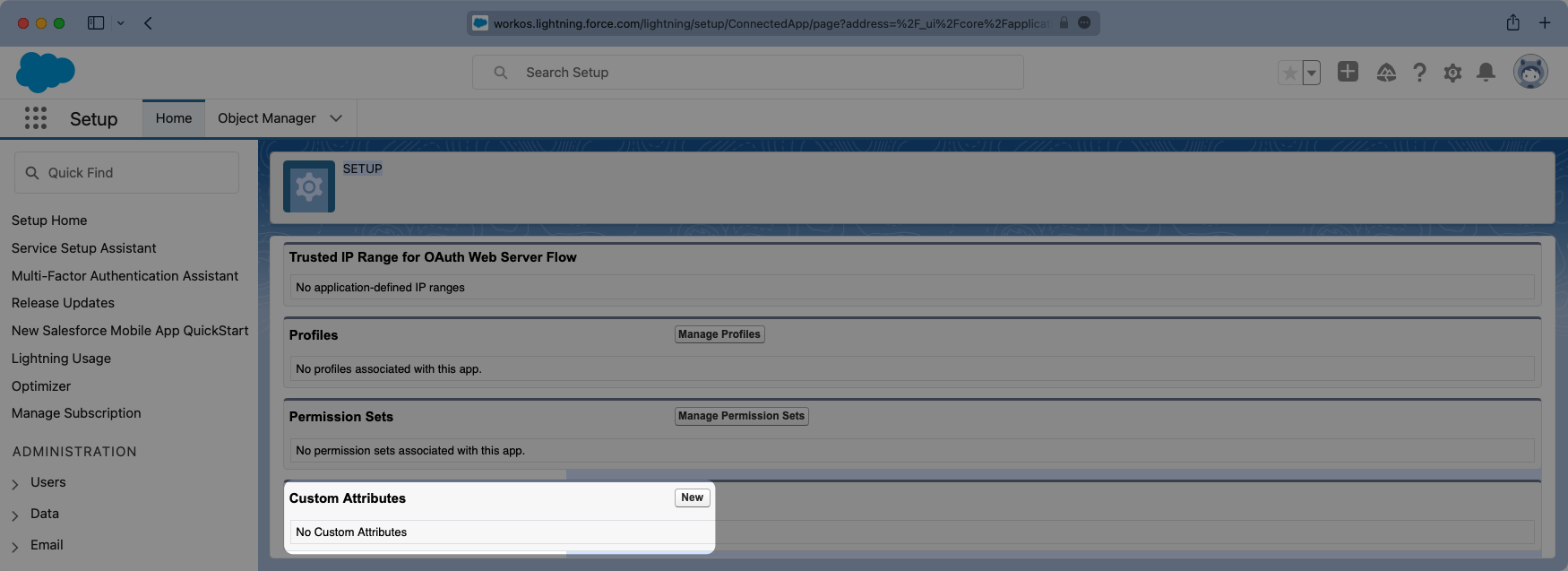

Viewing the app, scroll down to the "Custom Attributes" section and select "New".

Salesforce automatically includes email as an Attribute so we will need to add three fields:

  • id
  • firstName
  • lastName

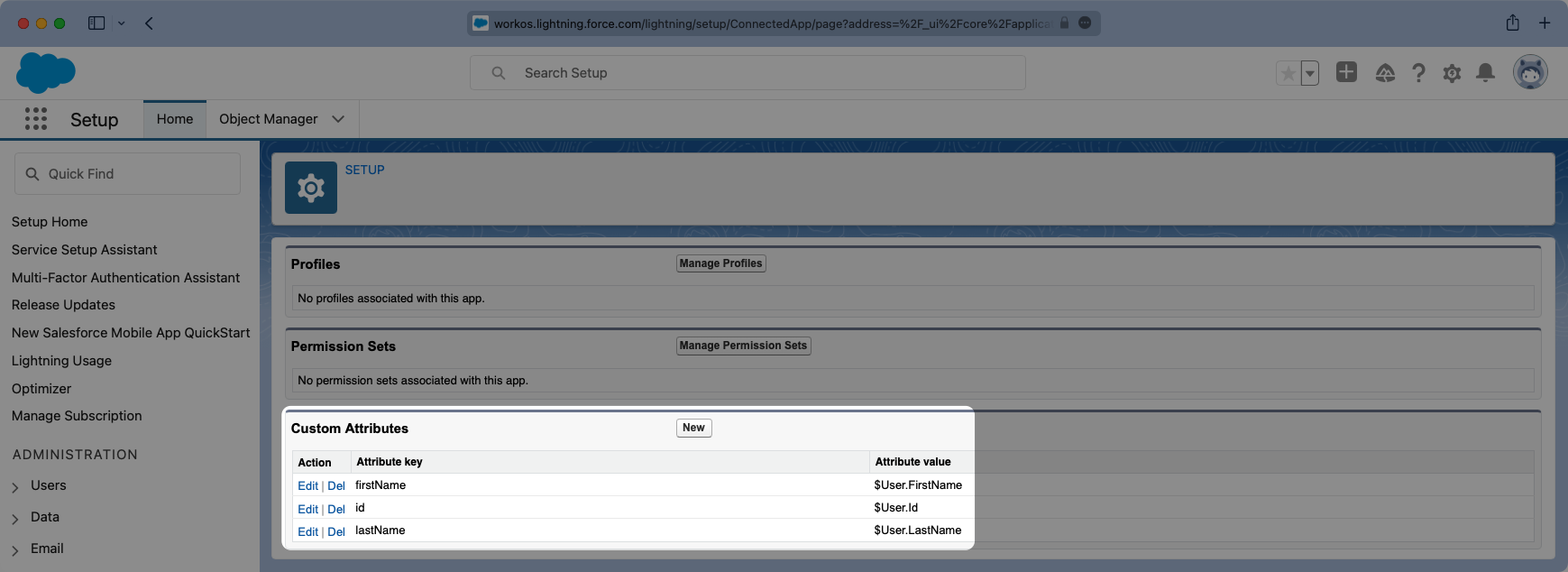

Configure the fields so the mapping matches the following:

5

Manage Profiles With Application Access

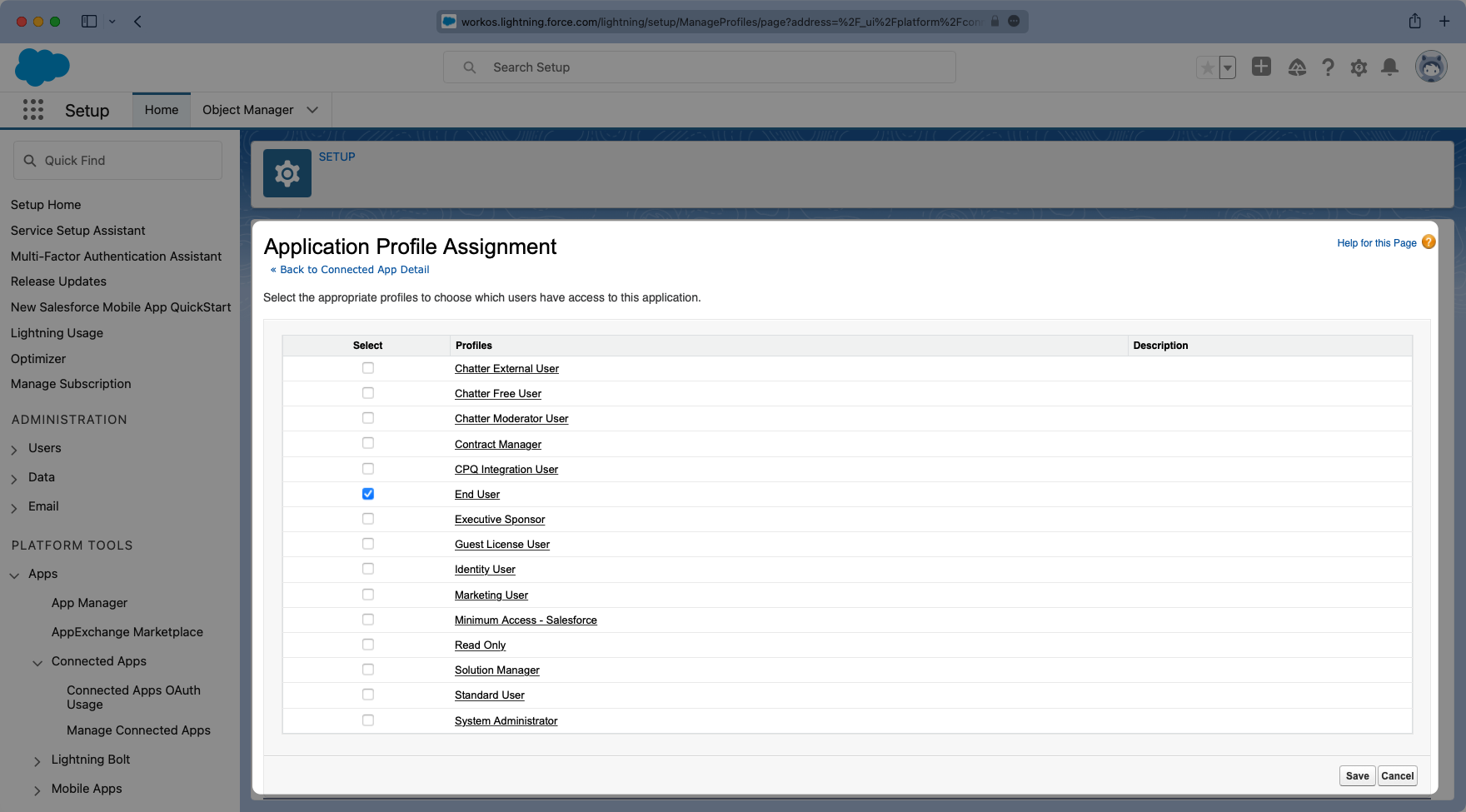

Similarly, viewing the app, there is a "Manage Profiles" section for granting access to control who can log into the application. Select "Manage Profiles" and grant access to the appropriate profiles that should have access to the application.

Press "Save".

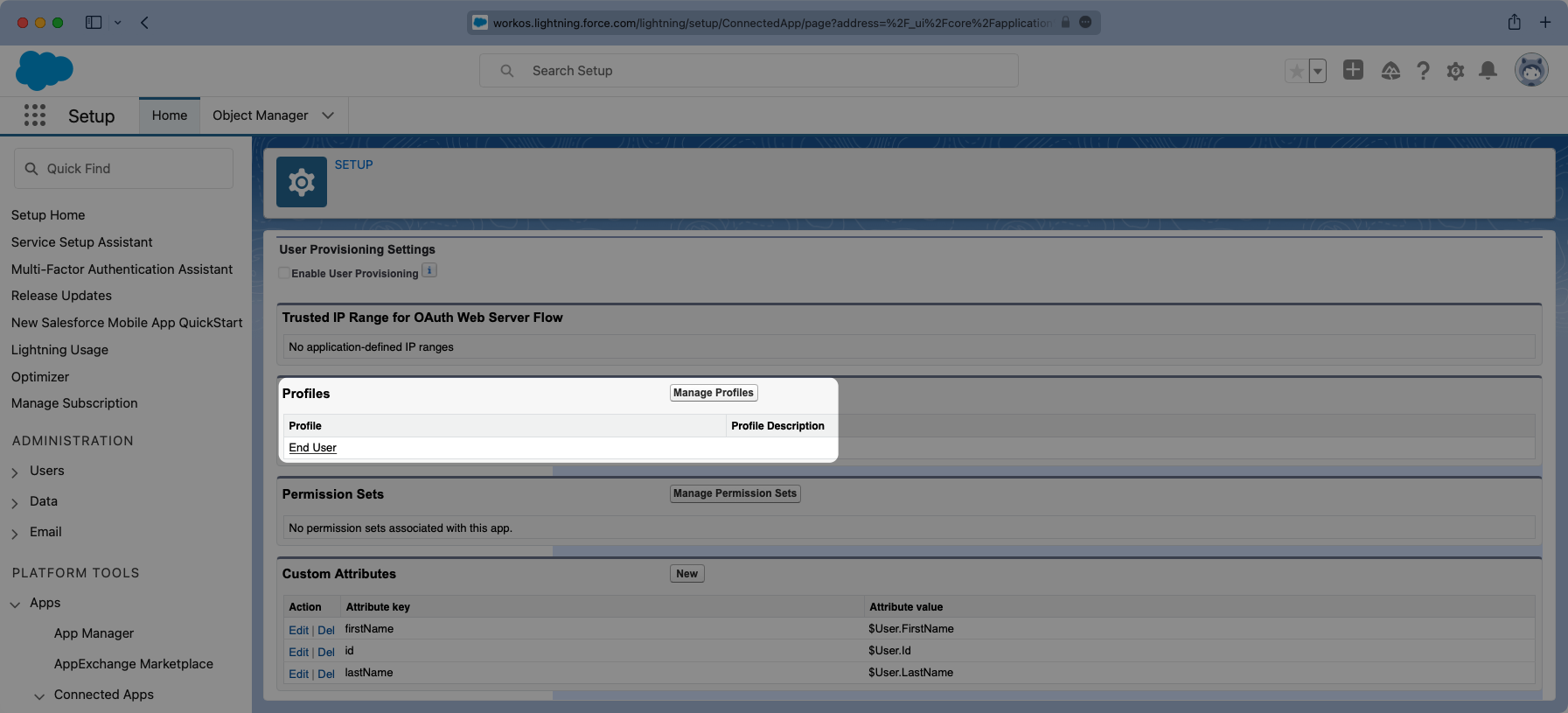

Here is an example of a successfully configured "Connected Application" allowing access to anyone with an "End User" Profile.

6

Obtain Identity Provider Details

Finally, return to the WorkOS Dashboard. Within your connection settings, edit the Metadata Configuration and provide the Metadata URL you obtained from Salesforce. Your Connection will then be verified and good to go!
