SCIM

Learn about syncing users with a custom SCIM provider

Introduction

To set up a SCIM v2.0 directory sync connection, you’ll need to provide the organization’s IT team with specific configuration details from WorkOS. This allows their SCIM server to synchronize users and groups with your application.

What WorkOS provides

When setting up a SCIM directory sync connection, WorkOS provides two key pieces of information that you’ll need to share with the organization:

Endpoint: The URL where the SCIM server will send requests
Bearer Token: Authentication credentials for the endpoint requests

Both of these are available in the Directory details section of the directory sync connection in the WorkOS Dashboard.

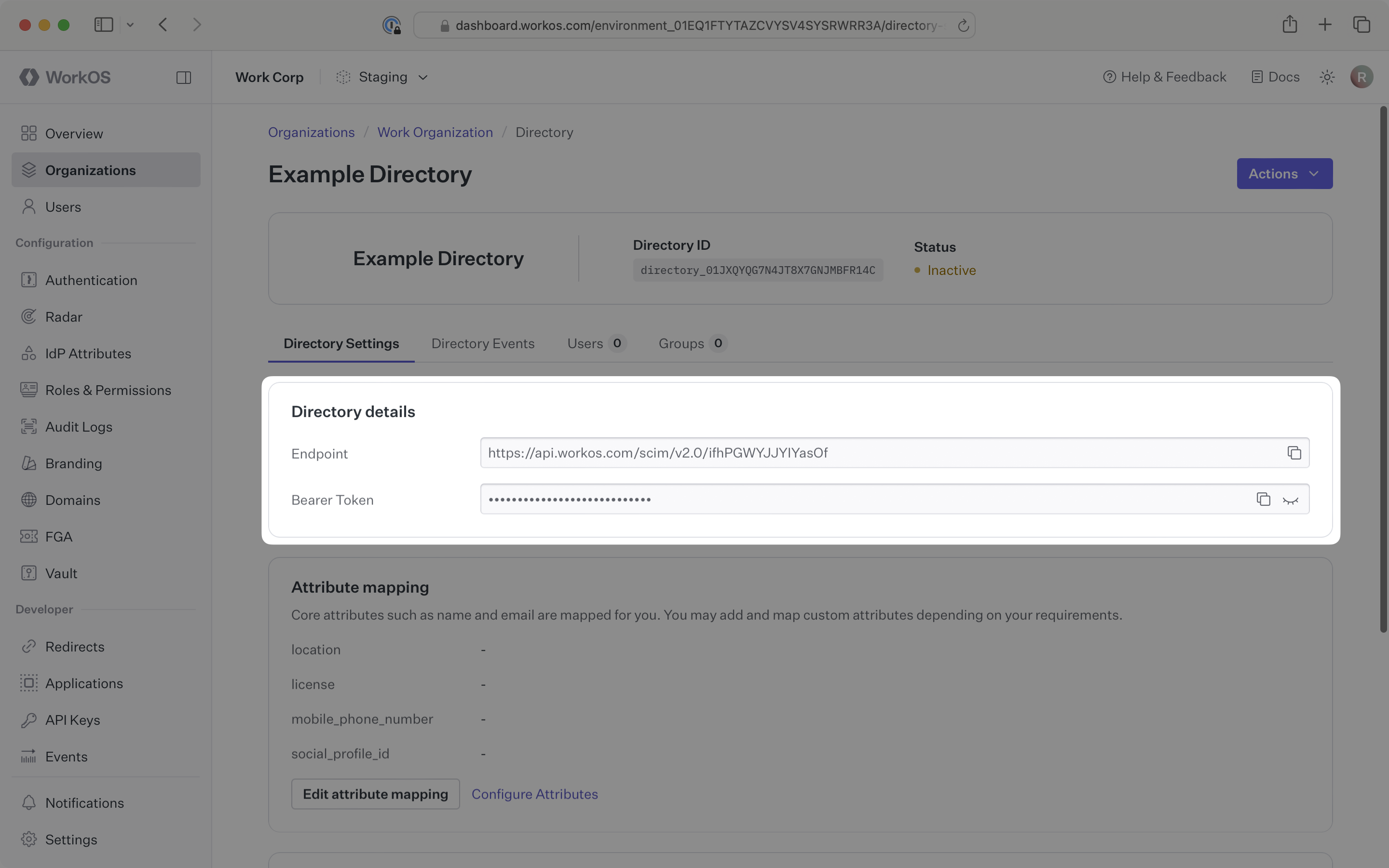

The WorkOS dashboard, highlights the directory details card with filled endpoint and bearer token inputs

These settings enable the organization’s SCIM server to securely send user and group data to your application through WorkOS.

What you will need

The organization’s IT team will handle the SCIM server configuration on their end. You simply need to provide them with the endpoint URL and bearer token from the WorkOS Dashboard.

Typically, the organization’s IT team will use these values to configure your application within their SCIM server or identity provider admin dashboard.

1. Set up your directory sync endpoint

In the left navigation menu, select the Organizations tab. Select the appropriate organization for which you will enable a SCIM directory sync connection.

On the organization’s page, scroll down to the Directory Sync section. Click Configure manually.

WorkOS Dashboard showing directory sync card with configure manually button highlighted

Select Custom SCIM v2.0 as the directory type. Input an appropriate name for the connection. Click Create Directory.

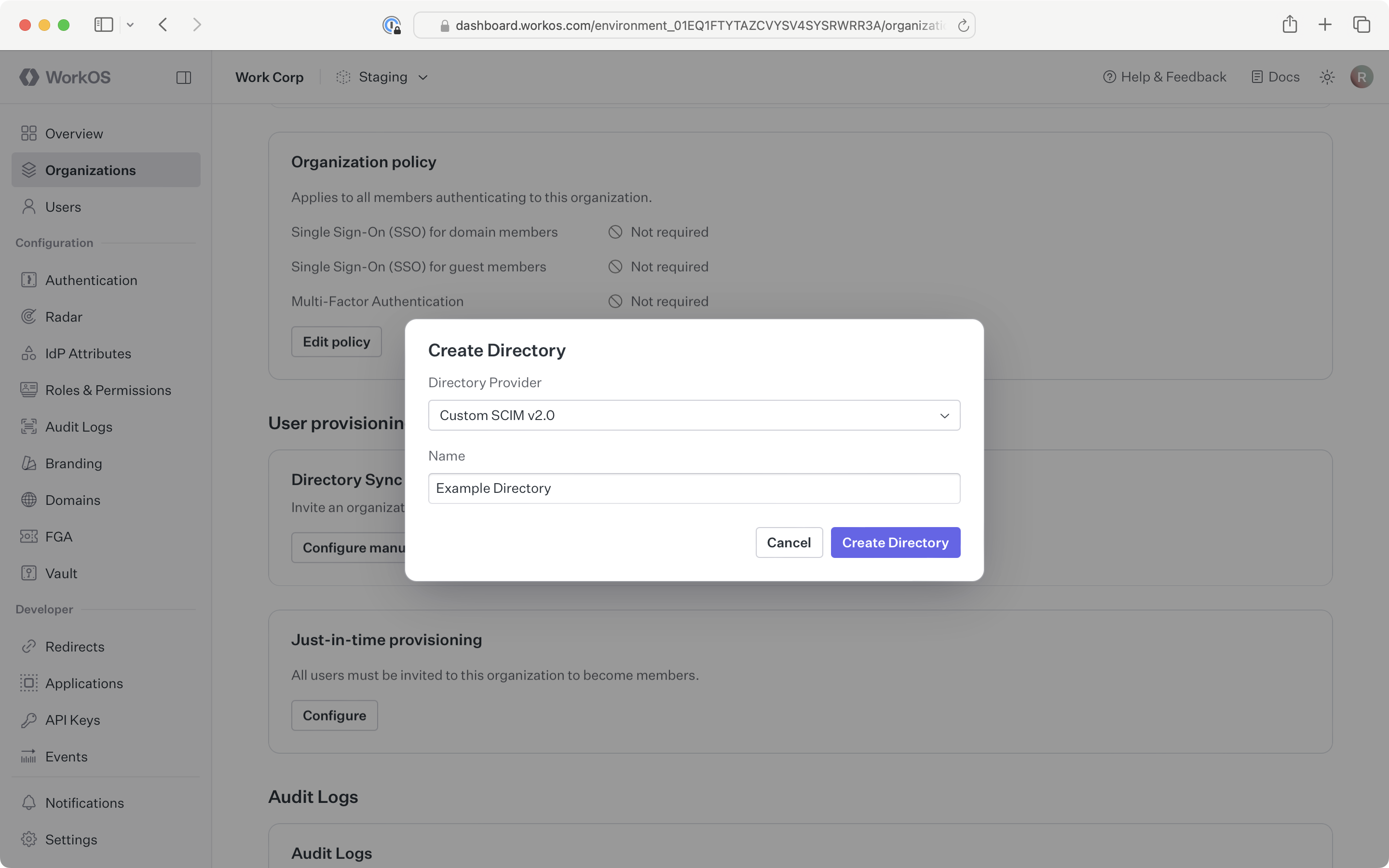

The WorkOS Dashboard with a create directory dialog showing directory type and name inputs

The directory sync connection will now display the endpoint for the SCIM server and the bearer token.

We have support for custom labeled URLs for directory sync endpoints. Contact us for more info!

2. Provide SCIM configuration to the organization

Copy the Endpoint and Bearer Token from the Directory details section on the directory page of the WorkOS Dashboard.

Provide these values to the organization’s IT team so they can configure the application within their SCIM server or identity provider admin dashboard:

Endpoint URL: The destination where their SCIM server will send user and group data
Bearer Token: Authentication credentials for secure communication

Once the organization has configured these values in their SCIM server, your application will be ready to receive real-time user and group synchronization.

3. Assign users and groups to your application

Now, whenever the organization assigns users or groups to your application in their directory, you’ll receive real-time dashboard updates based on changes in their system.

A detailed guide to integrate the WorkOS API with your application can be found here
